PacketSafari

PacketSafari anoncap

Share packet evidence. Keep identifiers private.

Create a safer sibling PCAP for AI, escalation, and customer review. The original remains untouched.

Request a demo Download Anoncap
Frame 1482 · decoded evidence VLAN / VXLAN / IPv4 / TCP / HTTP
Original PCAP
ipv4.src
10.20.44.17
http.host
api.customer-edge.invalid
payload
subscriber=491720001234
Anonymized sibling
ipv4.src
10.203.44.17
http.host
api.psf-anon.invalid
payload policy
[JSON removed]

Packet meaning remains: tunnel, addresses, transport, method, and path stay inspectable where supported.

Exposure is reduced: identifiers are replaced and payload handling follows the selected policy.

Inspect the transformation

See exactly
what changed.

Drag across one decoded packet. The left side shows the original evidence; the right shows the anonymized sibling. Switch cases only when you need another protocol or policy.

Choose a packet case
Public rules and private profiles use the same evidence view.
Public-share
Original PCAP Frame 1482 • VLAN / VXLAN / IPv4 / TCP / HTTP
Public-share output

Before public-share

A tunneled request still carries customer addresses, hostnames, and application payload bytes.

After public-share

Identifiers are deterministically replaced and supported headers remain readable while unsupported payload is truncated.

Packet bytes
Hex + ASCII
0010
81 00 00 6408 00 45 00 01 4a 31 44 40 00 40 1112 b5 12 b5 08 00 00 00 00 12 34
vlan 100vxlan vni 0x1234
0030
45 00 00 f4 7a 21 40 00 40 060a 14 2c 11c6 33 64 18
inner ipv4 10.20.44.17 -> 198.51.100.24
0050
47 45 54 20 2f 61 70 69 2f 76 31 2f 75 73 65 7248 6f 73 74 3a 2061 70 69 2e 63 75 73 74 6f 6d 65 72 2d 65 64 67 65
GET /api/v1/user Host: api.customer-edge
0070
0d 0a 0d 0a 7b 22 73 75 62 73 63 72 69 62 65 72 22 3a22 34 39 31 37 32 30 30 30 31 32 33 34 22
{"subscriber":"491720001234"
0080
2c 22 74 6f 6b 65 6e 22 3a22 6c 69 76 65 2d 64 65 6d 6f 2d 37 66 33 63 39 61 22
,"token":"live-demo-7f3c9a"
Packet details
Decoded fields
outer tunnel
vlan.id 100 + vxlan.vni 0x1234
ipv4.src -> ipv4.dst
10.20.44.17 -> 198.51.100.24
http.host
api.customer-edge.invalid
payload policy
captured JSON body retained
Packet bytes
Hex + ASCII
0010
81 00 00 6408 00 45 00 00 b0 31 44 40 00 40 1112 b5 12 b5 08 00 00 00 00 12 34
vlan 100vxlan vni 0x1234
0030
45 00 00 64 7a 21 40 00 40 060a cb 2c 11cb 00 71 58
inner ipv4 10.203.44.17 -> 203.0.113.88
0050
47 45 54 20 2f 61 70 69 2f 76 31 2f 75 73 65 7248 6f 73 74 3a 2061 70 69 2e 70 73 66 2d 61 6e 6f 6e
GET /api/v1/user Host: api.psf-anon
0070
0d 0a 0d 0a[payload bytes removed]
HTTP body: [JSON removed]
0080
[no L7 tail bytes emitted]
[subscriber/token removed]
Packet details
Decoded fields
outer tunnel
vlan.id 100 + vxlan.vni 0x1234
ipv4.src -> ipv4.dst
10.203.44.17 -> 203.0.113.88
http.host
api.psf-anon.invalid
payload policy
inner headers kept; L7 JSON removed
Drag
Choose the operating boundary

Run locally. Scale privately.

Use the PacketSafari Anonymizer app or the open-source CLI to create a local anonymized sibling capture, or evaluate PacketSafari's private profile when production captures need broader protocol tuning, managed workflow, and customer-controlled deployment.

PacketSafari Anonymizer app

Open a capture, choose network or application evidence, and save an anonymized copy. The replacement map stays on your machine, so you can translate an AI assistant's answer back to the real names and addresses.

Checksums

Portable Windows build without installer: zip download

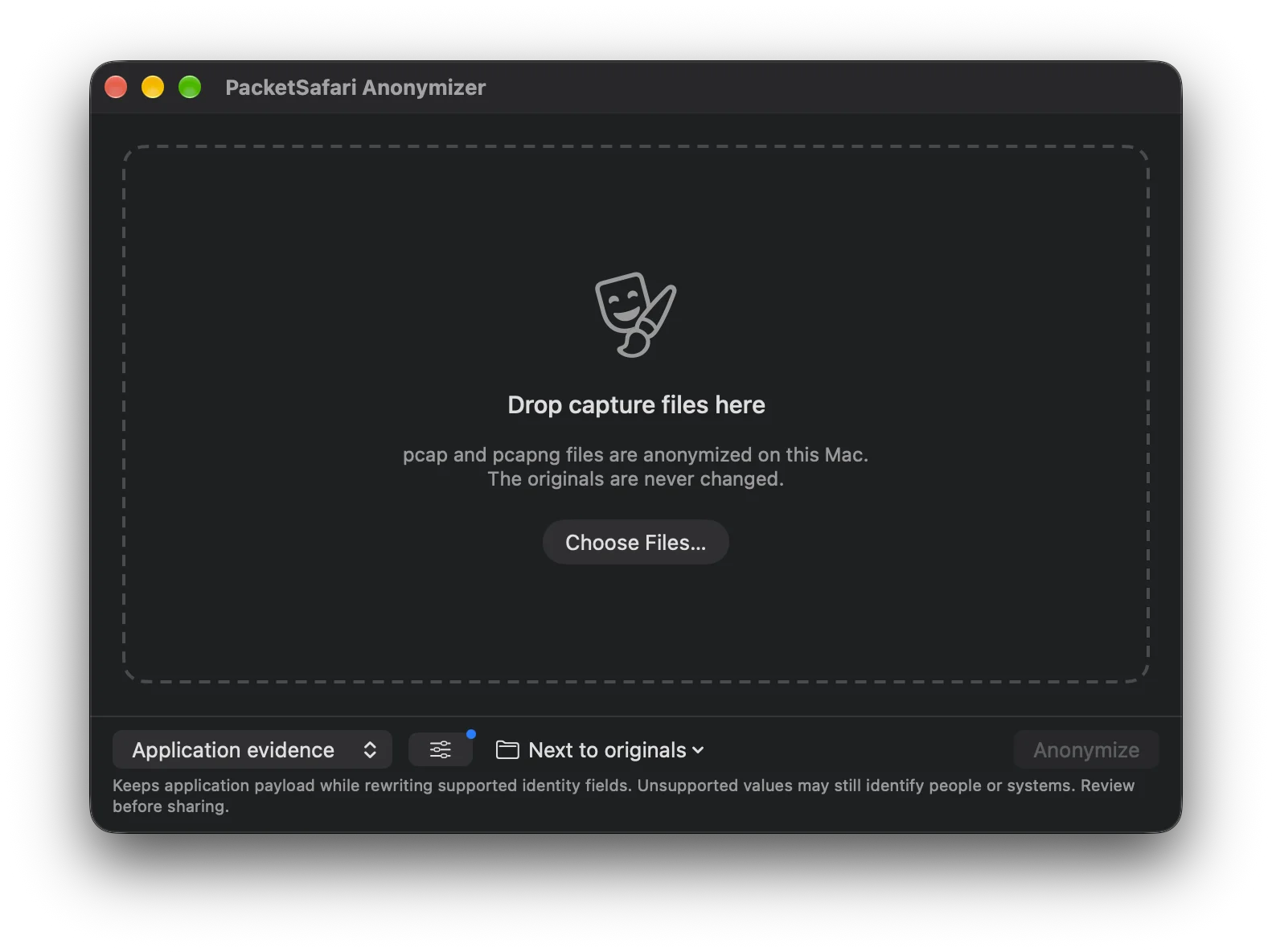

PacketSafari Anonymizer on macOS: drop capture files, choose network or application evidence, and anonymize locally
Command-line engine

The open-source anoncap CLI for scripts, servers, and batch jobs.

Release notes and checksums
Quick usage

Default public-share command

Create a local sibling capture with the public sharing baseline.

./bin/anoncap --public-share input.pcapng
./bin/anoncap --explain-defaults
./bin/anoncap --paranoid input.pcapng --report anon.report.json

`--public-share` writes `input-anon.pcapng` by default. Add `-w output.pcapng` to choose a name, or `--overwrite` to replace an existing output.

Detailed usage

Enterprise anonymization

Keep the capture useful.
Keep identifiers out.

Extend the open-source baseline with PacketSafari-maintained profiles for sensitive production and telecom captures.

Compare deployment options
Review protocol coverage

Technical depth

Check coverage before you share.

Protocol, payload, and policy determine what can be preserved safely. These references describe the current boundary.

How to anonymize a PCAPChoose the managed PacketSafari workflow or run the standalone CLI.Anoncap in PacketSafariCreate and manage anonymized sibling captures inside the product.Capability matrixReview current protocol, identifier, tunnel, and payload coverage.Payload reduction modesCompare adaptive truncation, slicing, and zero-after-boundary behavior.Anoncap referenceCLI options, defaults, output artifacts, and rules-file reference.Request a demoDiscuss private profiles, controlled AI, and on-premises deployment.
